How to Read a BCC CityPlan 2014 Overlay Map

Brisbane City Council's CityPlan 2014 is the planning instrument that governs land use and development across Australia's largest local government area by geography. It is a complex document, comprising a planning scheme policy, multiple codes, and a suite of overlay maps that identify specific risk and constraint areas.

For buyers, investors, builders, and developers, the overlay maps are the most immediately relevant component of CityPlan for property-level due diligence. This article explains what the most important overlay maps show and how to read them, in plain language.

BCC CityPlan 2014 is accessible online through the PD Online portal on Brisbane City Council's website. The portal allows you to search by property address and view the applicable zone, overlays, and relevant planning codes in an integrated mapping interface.

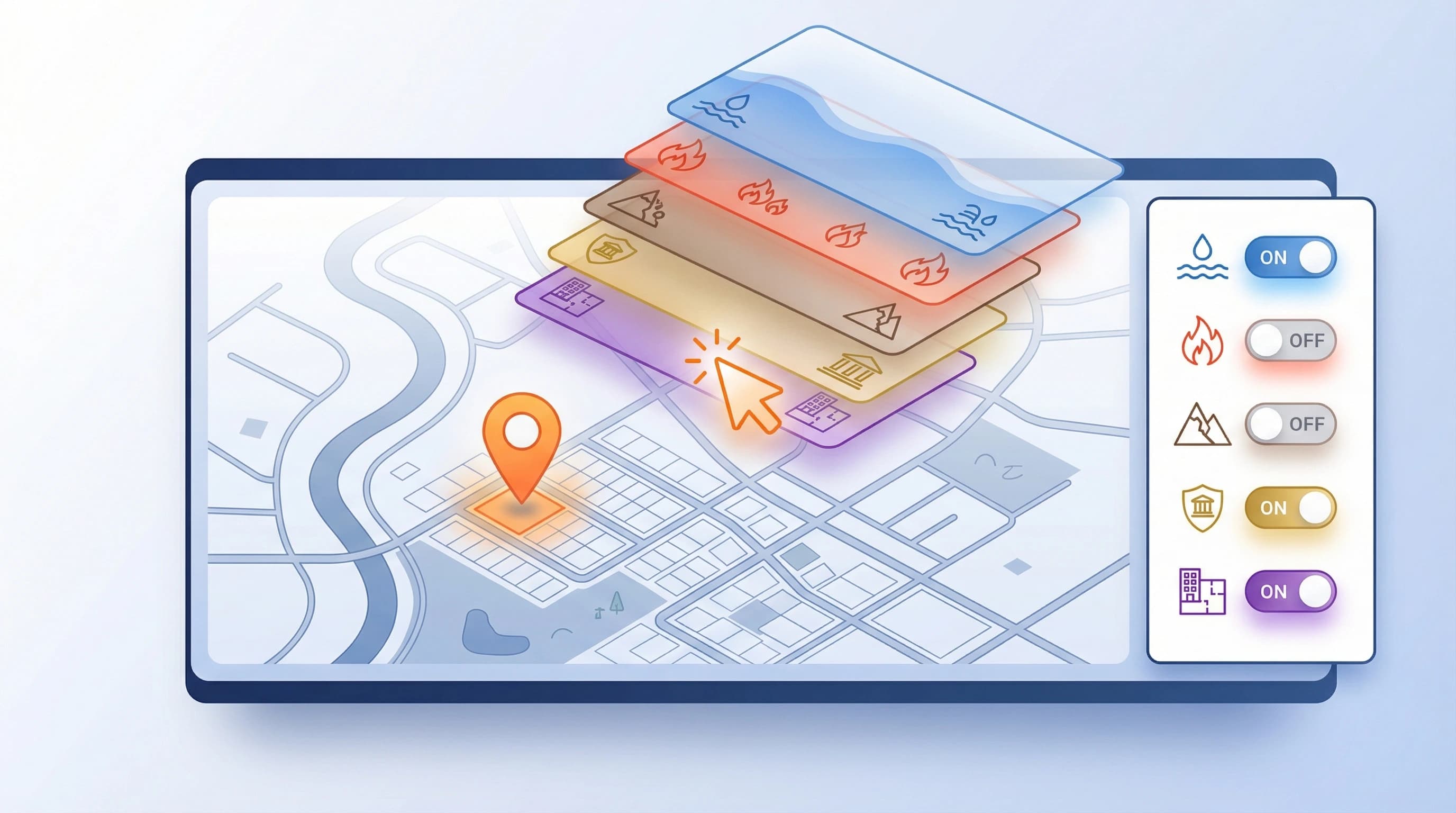

The interface shows a satellite or street map view with the relevant planning designations overlaid. You can toggle specific layers on and off to view individual overlays without the visual complexity of all layers displayed simultaneously.

Flood Overlay: As discussed in detail in earlier articles, the flood overlay covers three categories: creek and waterway flooding (in Flood Areas 1, 2, and 5), Brisbane River flooding (the Brisbane River Flood Planning Area), and overland flow risk. For any property in a flood-designated area, the overlay shows which specific category applies.

Bushfire Overlay: This overlay identifies properties within Bushfire Prone Areas based on proximity to bushland vegetation. The overlay shows different risk categories (Very High, High, Medium) and buffer areas. Properties within the overlay face construction requirements under AS 3959-2018 Construction of Buildings in Bushfire-Prone Areas.

Landslide Overlay: This overlay identifies areas where slope instability has been assessed as a risk. The four categories (Very High, High, Medium, Low) reflect the relative likelihood and consequence of slope movement based on geological mapping and historical data.

Heritage Overlay: This shows Local Heritage Places and Precincts protected under CityPlan, and State Heritage Places listed on the Queensland Heritage Register. The overlay identifies both individual sites and broader heritage precincts where character provisions apply.

Neighbourhood Plan Overlay: This shows the boundaries and precincts of the various neighbourhood plans that apply across Brisbane. Clicking on the overlay identifies which neighbourhood plan and precinct applies to a specific property.

Transport Noise Corridor Overlay: This shows areas affected by road and rail traffic noise in categories A, B, and C. Properties within these corridors face acoustic treatment requirements for habitable rooms under the transport noise corridor code.

Character Overlay: This identifies pre-1947 housing stock that carries character provisions limiting the extent and style of exterior alterations. The character overlay does not appear separately in all interfaces; in some PD Online views it is incorporated within zone designations.

Navigating multiple layers in the PD Online interface is manageable for planning professionals but can be confusing for buyers and investors without planning backgrounds. Each overlay uses different colour coding, and interpreting what a specific overlay designation means for a property requires familiarity with the relevant planning codes.

A PropDex due diligence report consolidates the most buyer-relevant overlays into a single, clearly labelled document with plain-English explanations of what each flag means and questions to ask or steps to take in response.

Rather than navigating PD Online for every property you are considering, run a PropDex report at propdextest.com.au as your first-line overlay check. For any flagged overlays that require deeper investigation, you can then go directly to the relevant CityPlan section with a clear understanding of the specific issue.
